Dimensional Metrology I Training Kit Six

Product Description

Dimensional Metrology I: Training Kit 6

Technical Description of Dimensional Metrology I: Training Kit 6

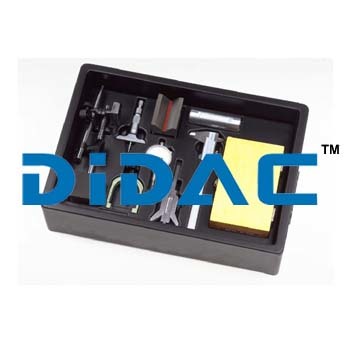

This dimensional metrology practice kit is designed for practical training in the metalworking trades. The kit offers the advantage of being ready for use immediately; it contains everything required for the exercises. The test pieces used are stainless steel shafts with various protrusions including one square section.  They were manufactured with the accuracy of CNC parts. The kit includes ten shafts, all of which differ to a minor degree in dimensions and each of which is individually marked. All parts are clearly laid out and well protected on a plastic tray. The trays are stackable, providing for space-saving storage.

Specification of Dimensional Metrology I: Training Kit 6

• Practice kit for dimensional metrology in the metalworking trades
• Measurement exercises on a stainless steel shaft
• Instructional kit complete with test pieces and measuring aids
• 10 Test pieces, each of different dimensions
• All parts clearly laid out and well protected on a plastic tray
• Detailed instructional material

Technical Data of Dimensional Metrology I: Training Kit 6

• Test pieces
• 9 Lengths and angles, 7 diameters and radii measurable
• Vernier caliper gauge: 0...200mm
• Depth caliper gauge: 0...150mm
• Radius gauges: 1...7mm concave and convex

Universal goniometer

• Track length: 150mm
• Adjustable to any angle

Dimensions and Weight of Dimensional Metrology I: Training Kit 6

• l x w x h: 500x350x110mm (tray)
• Weight: approx. 6kg
