Trainer On Domestic Refrigerators With Two Evaporators And Hermetic Compressor

Trainer On Domestic Refrigerators With Two Evaporators And Hermetic Compressor

Product Details:

400000 INR/Unit
X

Price And Quantity

  • 400000 INR/Unit
  • 1 Piece

Trade Information

  • 60/90 Days
  • Export Worthy
  • ISO

Product Description

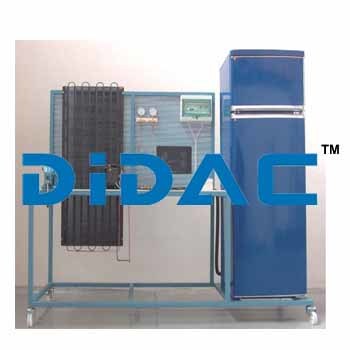

Trainer On Domestic Refrigerators With Two Evaporators And Hermetic Compressor

The Trainer On Domestic Refrigerators With Two Evaporators And Hermetic Compressor allows to study the circuit layout adopted in the normal domestic refrigerators with freezing room, fitted with positive temperature evaporator, negative temperature evaporator and hermetic compressor. The refrigerant is (HFC), CFC free, and the unit includes the measuring instruments that are necessary to monitor operating parameters and to test the refrigerator circuit. A wheeled frame carries a horizontal working panel, fitted with a 80 mm clamp, and a vertical frame, where the main components of the unit and a screen printed synoptic panel are mounted at sight. The refrigerator circuit is made of copper pipes. The set of equipment and the vacuum and recharge station allow a fast assembly and disassembly of the refrigerator circuit. The student can rise his knowledge about the main components of a refrigerator plant, experiment the problems due to the filling and the emptying of the circuit and, at last, simulate some simple faults.

Experiments of Trainer On Domestic Refrigerators With Two Evaporators And Hermetic Compressor

  • Study of the main components.
  • Assembly and disassembly of the circuit.
  • Filling of a refrigerator circuit and leak detection.
  • Fault simulation.

Required services of Trainer On Domestic Refrigerators With Two Evaporators And Hermetic Compressor

  • Power supply: 220 V AC single phase, 50/60 Hz, 0.5 kW.
  • Power supply: 220 V AC single phase, 50/60 Hz, 0.37 kW.
