Product Description


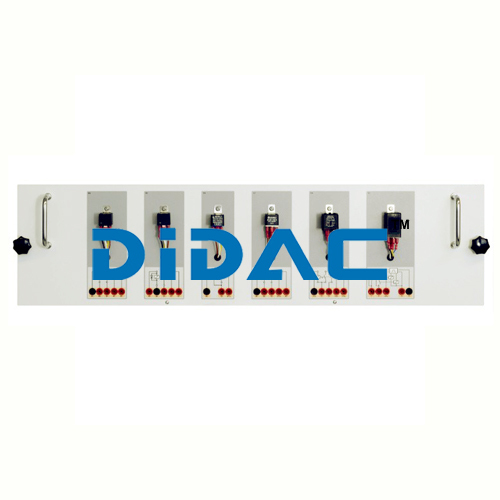

The Relay Circuits module panel supplementsmany basic circuits to the lighting panels with additional relays. The mostfrequently occurring relays in a modern vehicle are used. In addition to theextensive wiring according to schematics, the comfort indicator function alsoimproves your analog basic equipment.



  1. Connect all original automotive componentsaccording to the wiring diagram
  2. Quick and easy insertion of hidden practicalerrors in the circuit design
  3. Use standard workshop measuring devices
  4. 28 x connectors in 4mm safety design, forwiring and for measuring


Learning Objectives:

  1. Read and use vehicle wiring diagrams
  2. Identify electrical and electroniccomponents, assemblies and systems
  3. Testing and maintenance of electrical andelectronic circuits
  4. Selecting and using electrical measuring andtesting devices
  5. Measurement and evaluation of electricalvalues and signals


Technical Specification:

  1. Power supply: 12 Volt DC
  2. Dimensions: L x H x D: 956 x 250 x 140 mm
  3. Weight: about 3 kg
